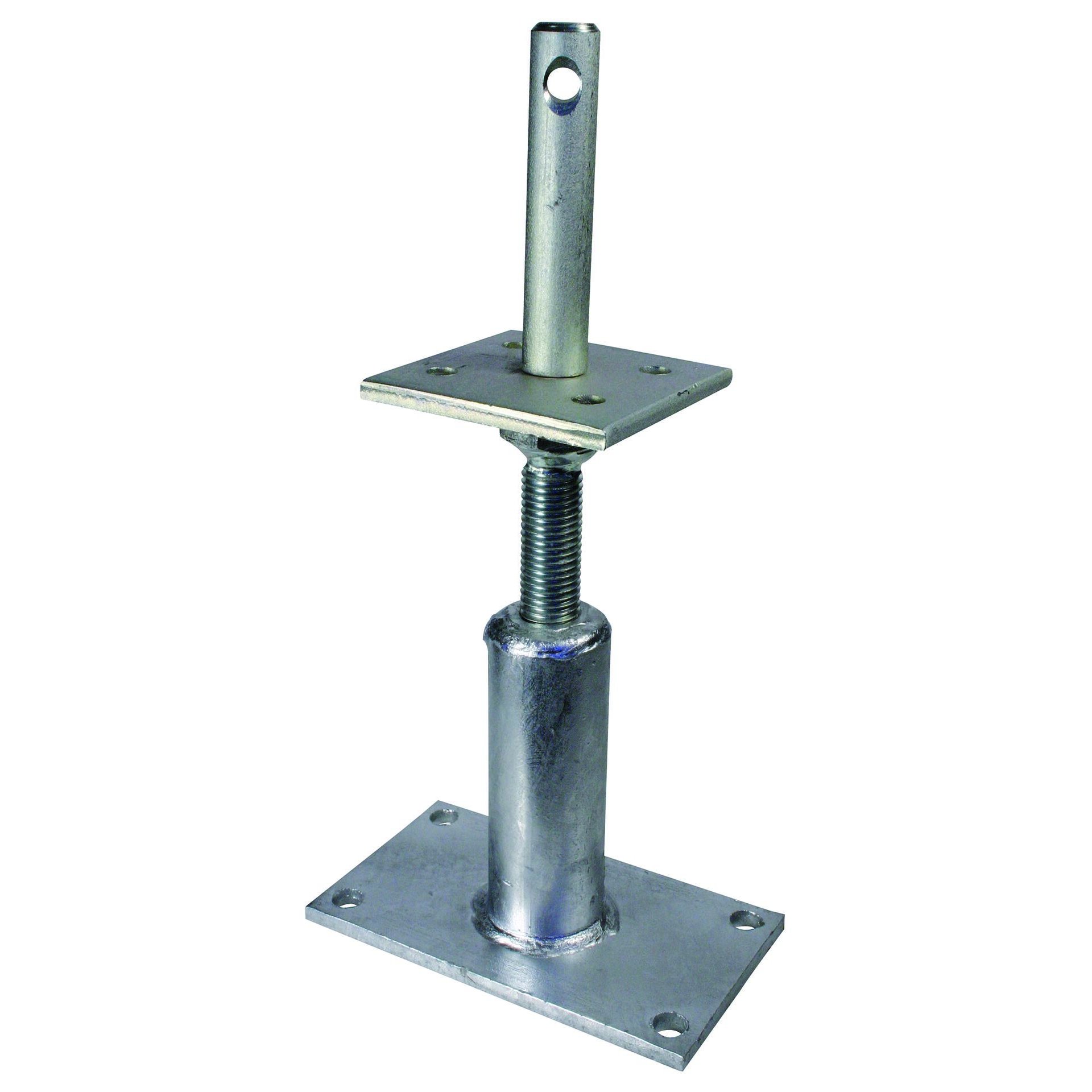

Pfostenträger Typ 1706 Stahl verzinkt
Zur Befestigung auf Beton
Eigenschaften
Anwendungsbereich
- Carports, Eingangsdächer, Anbauten, ...
Technische Daten
Einlassdolle H x Ø
120 x 24 mm
Einlassdolle LA x Ø
1 x 11 mm
Grundhöhe
180 mm
Grundplatte L x B x S
180 x 100 x 8 mm
Grundplatte LA x Ø
4 x 13 mm
Höhe verstellbar
70 mm
Oberfläche
feuerverzinkt
Trägerplatte L x B x S
100 x 100 x 8 mm
Trägerplatte LA x Ø
4 x 11 mm
Typ
1706
Werkstoff
Stahl
Zulassung
ETA - 16/0550
Technische Daten
Einlassdolle H x Ø
120 x 24 mm
Einlassdolle LA x Ø
1 x 11 mm
Grundhöhe
230 mm
Grundplatte L x B x S
180 x 100 x 8 mm
Grundplatte LA x Ø
4 x 13 mm
Höhe verstellbar
70 mm
Oberfläche
feuerverzinkt
Trägerplatte L x B x S
100 x 100 x 8 mm
Trägerplatte LA x Ø
4 x 11 mm
Typ
1706
Werkstoff
Stahl
Zulassung
ETA - 16/0550
Technische Daten
Einlassdolle H x Ø
120 x 24 mm
Einlassdolle LA x Ø
1 x 11 mm
Grundhöhe
280 mm
Grundplatte L x B x S
180 x 100 x 8 mm
Grundplatte LA x Ø
4 x 13 mm
Höhe verstellbar
70 mm
Oberfläche
feuerverzinkt
Trägerplatte L x B x S
100 x 100 x 8 mm
Trägerplatte LA x Ø
4 x 11 mm
Typ
1706
Werkstoff
Stahl
Zulassung
ETA - 16/0550
Mehrwerte
Verarbeitungshinweise
Hinweis
Technische Daten
- Trägerplatte L x B x S: 100 x 100 x 8 mm ,
- Grundplatte L x B x S: 180 x 100 x 8 mm ,
- Trägerplatte LA x Ø: 4 x 11 mm ,
- Zulassung: ETA - 16/0550 ,
- Grundplatte LA x Ø: 4 x 13 mm ,
- Einlassdolle H x Ø: 120 x 24 mm ,
- Höhe verstellbar: 70 mm ,
- Werkstoff: Stahl ,
- Oberfläche: feuerverzinkt ,
- Einlassdolle LA x Ø: 1 x 11 mm ,
- Typ: 1706 ,
